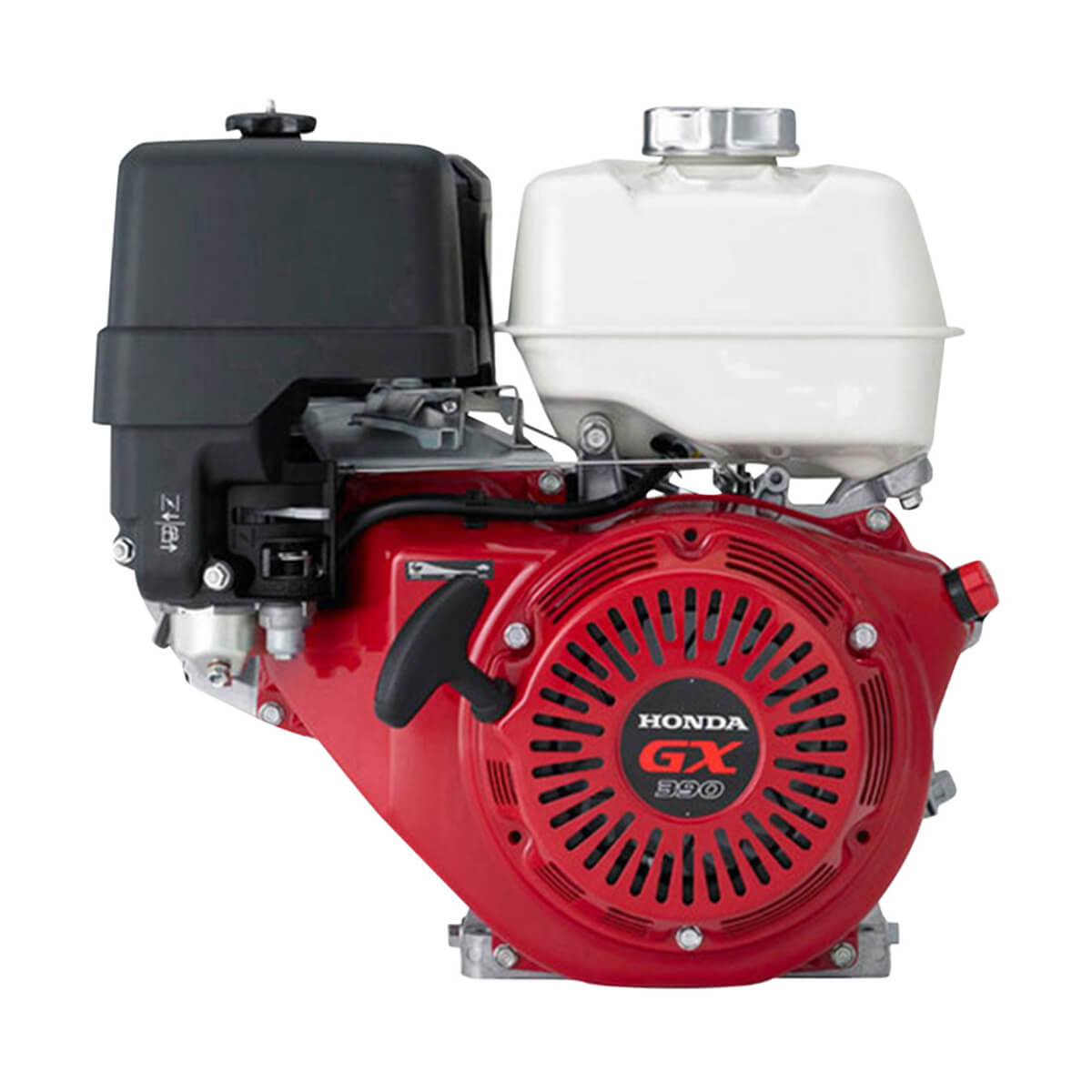

Honda 13HP 3A Engine

SKU # 838428
|
Model # GX390-QAE

Set your location to show prices and availability

    Product Information
    • Applications:
      Industrial Equipment, Heavy Duty Construction Equipment, Generators, Water
      Pumps, Portable Saw Mills, Industrial Pressure Washer
    • Efficient
      and compact overhead valve design
    • Durable
      ball bearing crankshaft
    • Electronic
      ignition and automatic decompressor for easier starting
    • Heavy
      duty recoil starter
    • 2
      sided oil drain/ filler cap for varied applications
    • Large
      standard muffler for quiet operation
    Specifications
    Dry Weight 34.0 kg / 75 lbs.
    Current 3 Amp
    Bore x Stroke 88 x 64 mm (3.5 x 2.5 in)
    Carburetor Horizontal type butterfly valve
    Compression Ratio 8.2 : 1
    Engine Type Air-cooled, 4-Stroke, OHV, single cylinder
    Fuel Tank Capacity 6.1 l ( 6.4 US qt)
    Net Horse Power Output* 8.7 kW (11.0 HP) at 3,600 rpm
    Net Torque 26.4 Nm (19.5 lbs ft) at 2,500 rpm
    Oil Capacity 1.1 l (1.16 US qt. 0.97 Imp qt.)
