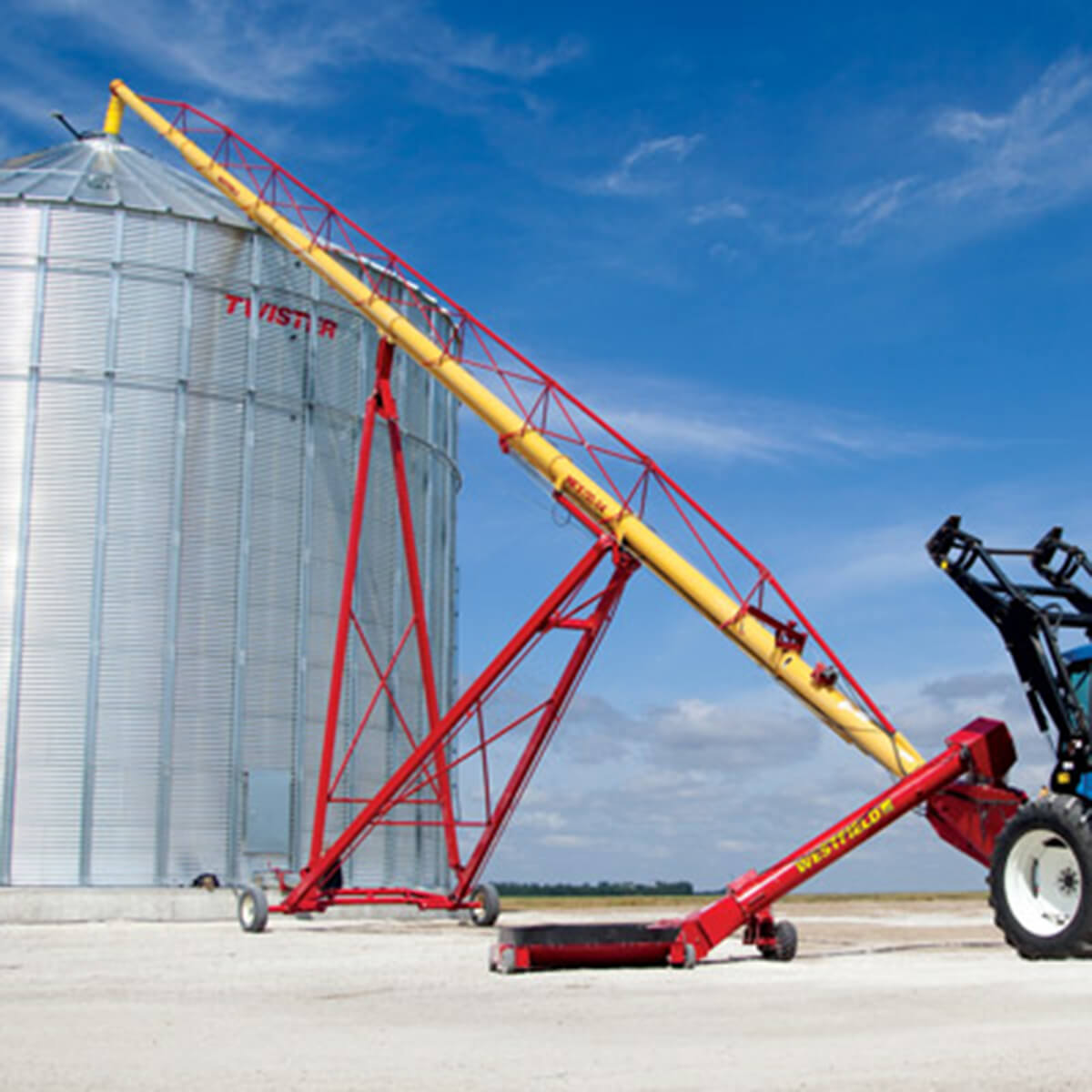

Westfield MKX 130-94 Auger

SKU # 1097993

Set your location to show prices and availability

    Product Information

    Find Replacement Parts

    The MKX 130 has over 75 proven performance enhancements including: precision engineered auger flighting, commercial strength frame and trussing and easier-to-use hopper, guaranteeing unmatched dependability and serviceability.

    • Wear Edge Technology™ - provides an extra layer of steel welded to the edge on critical wear points. As a result, flighting lasts longer and needs to be replaced less often – saving time and money.
    • Powder Coat Paint - durable powder coat paint for a strong long lasting finish that looks good and protects against rust.
    • A-Frame Undercarriage - withstands bowing and maintains rigid alignment during heavy loads
    • Low Profile Hopper - features left and right hand flighting to pull grain toward the center of the hopper so it flows efficiently up into the tapered boot - maximizing capacity and minimizing unload time.

    Westfield MKX Series Brochure.pdf

    Optional Features:

    • LED working lights
    • Transport lights
    • Right angle drive
    • Speed reducer-reverser kit
    • Reverser kit
    Specifications
    ​Tubing Gauge: 12 Ga
    Tube Connectors: Heavy-Duty 1/4" (0.6 cm) Angle Flange
    Main Flighting: 11 3/4" (29.8 cm) OD x 1/4" (0.6cm) Stretched & Welded (Wear Edge at Critical Transfer Points)
    Wear Edge (Reinforced Flight): 1/4" (0.6 cm) plus 10 Ga Ribbon Weld = 5/16" (0.8 cm) Wear Edge on Critical Grain Transfer Points
    Flighting Shaft: High Strength 3" (7.6 cm) OD x 11 Ga Tubing Square Flight Connection
    Upper Bearing: 1 3/4" (4.4 cm) Pillow Block Greaseable Ball Bearings
    Lower Bearing: 2" (5.1 cm) Pillow Block Greaseable Ball Bearing
    Tube Trussing: Combination 2 1/2" (6.4 cm) x 11 Ga Steel Tubing & 3/8" (1 cm) Galvanized Cable
    Hydraulic Lift: Dual 4" (10.2 cm) Single Acting Cylinders with 5/16" (0.8 cm) Aircraft Cable
    A-Frame Undercarriage: 4" (10.2 cm) x 8" (20.3 cm) HSS Tubing
    Axle: 4" (10.2 cm) x 4" (10.2 cm) Square Tubing
    Hub: 6-Bolt Automotive Type
    Tires: 16" (40.64 cm)
    PTO Shaft: 55R Constant Velocity with 2-Bolt Shear
    Parking Jack: 5000 lb. (2268 kg) Side Wind
    Sprocket & Chain: Hardened Tooth Sprocket with HD #80 Chain
    Low Profile Hopper: 60" (I) x 48" (W) x 10 1/2" (H) with Flat Free Tires
    Pressure Required to Raise Auger: 2000 PSI (137.9 bar)
    Power Required (Dry Wheat): 145-165 hp (108.1-123 kW)
    Wheel Tread: 146"-182" (370.8 cm x 462.3 cm)
    Transport Height (14" Hitch): 13'3" (4 m)
